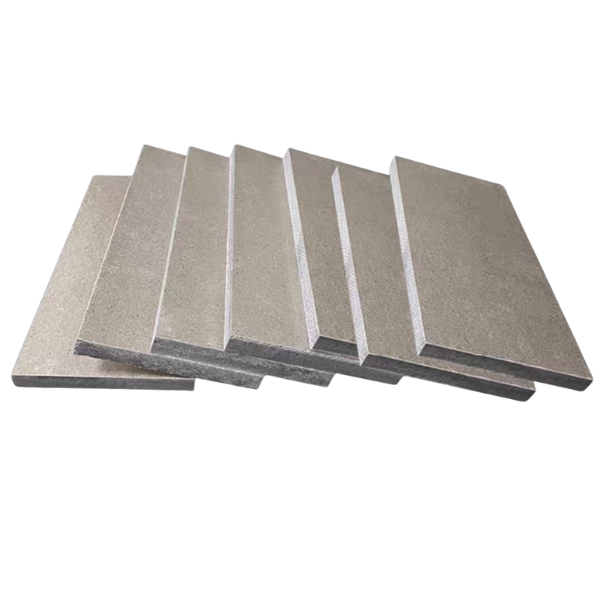

MICASHEET™ stands as a premium brand in high-performance mica plates, engineered using 90% muscovite or phlogopite mica paper and 10% silicone resin. We manufacture rigid and flexible sheets and plates tailored to industrial and appliance applications.
Why Choose MICASHEET™?
- Brand‑Exclusive Manufacturing
MICASHEET™ employs proprietary hot‑press and cold‑lamination techniques regulated under ISO 9001:2015. Our production facility includes real‑time monitoring of curing temperature, resin flow rate, and thickness tolerance within ± 0.02 mm. - Superior Thermal & Electrical Performance
Rigid phlogopite mica variant operates continuously at 700 °C, with short‑duration resistance up to 1000 °C. The dielectric strength exceeds 15 kV/mm, even under prolonged heat exposure. - Mechanical Versatility
Flexible MICASHEET™ boards offer excellent workability: they bend, cut, punch, or form into complex shapes without delamination. Rigid sheets and plates exhibit high bending strength and dimensional stability. - Certified Safety & Environmental Integrity
Our product contains absolutely no asbestos, meets RoHS compliance, and emits minimal odor or smoke under heat testing. - Custom Forms & Certified Quality
We accept customer drawings or samples. All batches include internal QC test reports, including dielectric breakdown testing, tensile strength, and thermal cycle assessment.
Typical Applications of Mica Plates
MICASHEET™ mica plates play a vital role in:
- Electrical appliances: heater fans, electric ovens, microwaves, hair dryers
- Industrial heating: furnace liners, induction heaters, kilns
- Electrical insulation: motor armatures, transformer coils, switchgear
- Battery systems and EV modules, printing machines, disinfection equipment, heat exchanger supports
We partner directly with appliance OEMs and battery manufacturers for custom thermal support solutions.
Technical Specifications of Mica Plates
| Feature | MICASHEET® Specification |
|---|---|
| Material Composition | ≈90% mica paper (muscovite/phlogopite) + ≈10% silicone resin |
| Thickness Range | 0.1 mm – 100 mm, tolerance ± 0.02 mm |
| Standard Sheet Sizes | 1000×600 mm, 1000×1200 mm, 1000×2400 mm or custom |
| Continuous Temperature | Muscovite ≤ 500 °C; Phlogopite ≤ 700 °C |
| Short-Term Max Temperature | Up to 800 °C (muscovite); 1000 °C (phlogopite) |
| Dielectric Strength | ≥ 15 kV/mm (tested at 700 °C) |
| Mechanical Properties | Tensile strength ≥ 60 MPa; elongation ≥ 3% |
| Water Absorption | ≤ 1% |
| Certifications | ISO 9001:2015, RoHS, UL94 V‑0 (upon request) |
Packaging & Storage
We pack 50 kg per pallet with shrink‑wrapped film and carton protection; export pallets follow fumigation‑free standards. Parceled up to 1000 kg per pallet or custom crates. Storage requires a dry, temperature‑controlled indoor environment with no expiration date.
- Each pallet is packed with 50 kg, using wrapped film and carton protection.
- Export pallets comply with fumigation-free standards.
- Each pallet can be parceled up to 1000 kg, or custom crates are available.
- Storage requires a dry, temperature-controlled indoor environment
MICASHEET™ Case in Point: Industrial Furnace Upgrade
A leading steel foundry replaced standard insulation boards with MICASHEET™ phlogopite plates. Result: 18% reduction in power consumption, extended service life by 20%, and significantly reduced ventilation odor emissions. Technical data and client approval reports provided upon request.
Ready to Enhance Your Project?
Contact MICASHEET™ for samples, technical datasheets, or a custom quote. Provide your design requirements or drawings—we offer rapid prototyping, custom fabrication, and ongoing technical support to ensure your equipment achieves optimal insulation performance.
